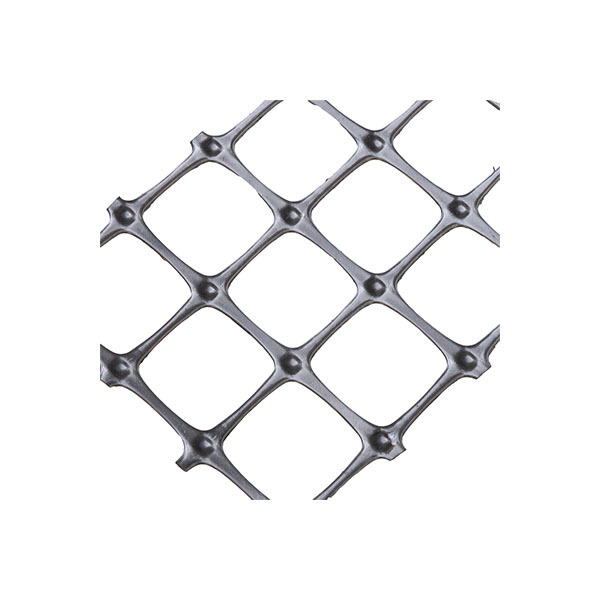

PP Plastic Biaxial Geogrid
Polypropylene biaxial geogrid is made in Polypropylene (PP) with their square apertures, high tensile strength and optimised geometry of nodes and ribs make them equal to any other similar material
Classification : Geogrid
WhatsApp : +86-13964001233
Email : services@geotextiletrade.com
- Product Details
- Technical
- Shipping
- FAQ
Product Details
- PP Plastic Biaxial Geogrid has the characteristics of high tensile strength, low elongation, high temperature resistance,high modulus,
- light weight,good toughness,corrosion resistance,long service life etc., can be widely used in maintenance of the old cement pavement, airport runway, dam, the river bank, slope protection, bridge engineering and fields of enhancement processing and so on, can strengthen for the road surface, reinforcing, prevent pavement fatigue crack, hot cold expansion crack and the reflection crack, and can scatter pavement bearing stress, extend the service life of pavement, high tensile strength and low elongation, no long-term creep, physical and chemical stability, resistance to fatigue cracking, resistance to high temperature rutting, low temperature shrinkage crack resistance, delaying and decreasing crack reflection.
| Specifications item | TGSG 15-15 | TGSG 20-20 | TGSG 30-30 | TGSG 40-40 | TGSG 45-45 |
|---|---|---|---|---|---|
| Roll width (m) | 4(+0.20) | ||||
| Each longitudinal tensile yield strength (KN/m) | 15 | 20 | 30 | 40 | 45 |
| Each horizontal tensile yield strength (KN/m) | 15 | 20 | 30 & 40 | 45 | 45 |
| Vertical yield elongation (%) | 13 | ||||
| Horizontal yield elongation (%) | 16 | ||||
| Longitudinal elongation of 2% when the stretching force (KN/m) | 5 | 8 | 11 | 13 | 16 |
| Horizontal elongation rate of 2 percent of the stretching force (KN/m) | 7 | 10 | 13 | 15 | 20 |
| Vertical elongation of 5% when the stretching force (KN/m) | 8 | 10 | 15 | 16 | 25 |
| Horizontal elongation of 5% when the stretching force (KN/m) | 10 | 13 | 15 | 20 | 22 |
| Width (m) | 1—6 | ||||
| Note | Special specifications can be customized according to the contract. | ||||
- Packing Details : Red or Yellow tape with PE film or PP woven bags. We provide OEM mark.
- Payment terms : T/T or L/C at sight.
- Delivery Details : 7-15 days after receive the advance payment.
Application
Application
The reinforcing action of PP Plastic Biaxial Geogrid lies mainly in confining soil and increasing its shearing resistance by a process of interlocking between the square ribs and the soil. The load dispersal effect from the interlocking mechanism is highly effective and can reduce sub-base thickness and construction cost.
Package of PP Plastic Biaxial Geogrid
| Material | Polypropylene / Polyester / HDPE (product specific) |
|---|---|
| Standard | ASTM, ISO, CE (as applicable) |
| Width | 1 m – 6 m (customizable) |
| Length | 50 m – 100 m per roll (customizable) |
| Tensile Strength | Product specific — see specification table in Product Details |
| UV Resistance | Available with UV-stabilized formulations |
| Application | Civil engineering, environmental protection, geotechnical works |
We pack all geosynthetic products with compression and shockproof protection before leaving the factory to ensure rolls and panels arrive intact.
Packaging & Delivery
Packaging: woven bags / pallets / wooden crates (product specific)
Labeling: product name, batch number, dimensions, and net weight
Port: Qingdao / Tianjin / Shanghai (China)
Lead time: subject to order quantity and production schedule
Shipping Methods
1. Express: DHL / UPS / FedEx / TNT (door-to-door)
2. Air freight or sea freight (FCL / LCL)
3. Customer-appointed forwarder accepted
We choose safe packaging materials to prevent damage in transit.
Q: What payment methods do you accept?
A: T/T (wire transfer), L/C, and Trade Assurance. PayPal or Western Union may be available for small orders.
Q: What is the minimum order quantity (MOQ)?
A: MOQ varies by product. Contact us with your specification and quantity for a quotation.
Q: Can you provide samples?
A: Yes. Sample rolls or swatches are available; courier cost is usually borne by the buyer.
Q: Which logistics partners do you use?
A: We work with major international forwarders and can ship by express, air, or sea according to your schedule.
Q: How long is the production lead time?
A: Standard products: typically 7–15 days after deposit. Custom specifications may require longer lead time — we will confirm before order.
